Floor mounting bracket BH
200 X 200 X 80 / For AUTOTERM Air 4D
Technical parameters:
Floor mounting bracket will let you easily install AUTOTERM Air 4D air heater in the floor, thus saving more space in motorhomes, caravans, boats. The floor mounting bracket can be hermetically sealed if needed.

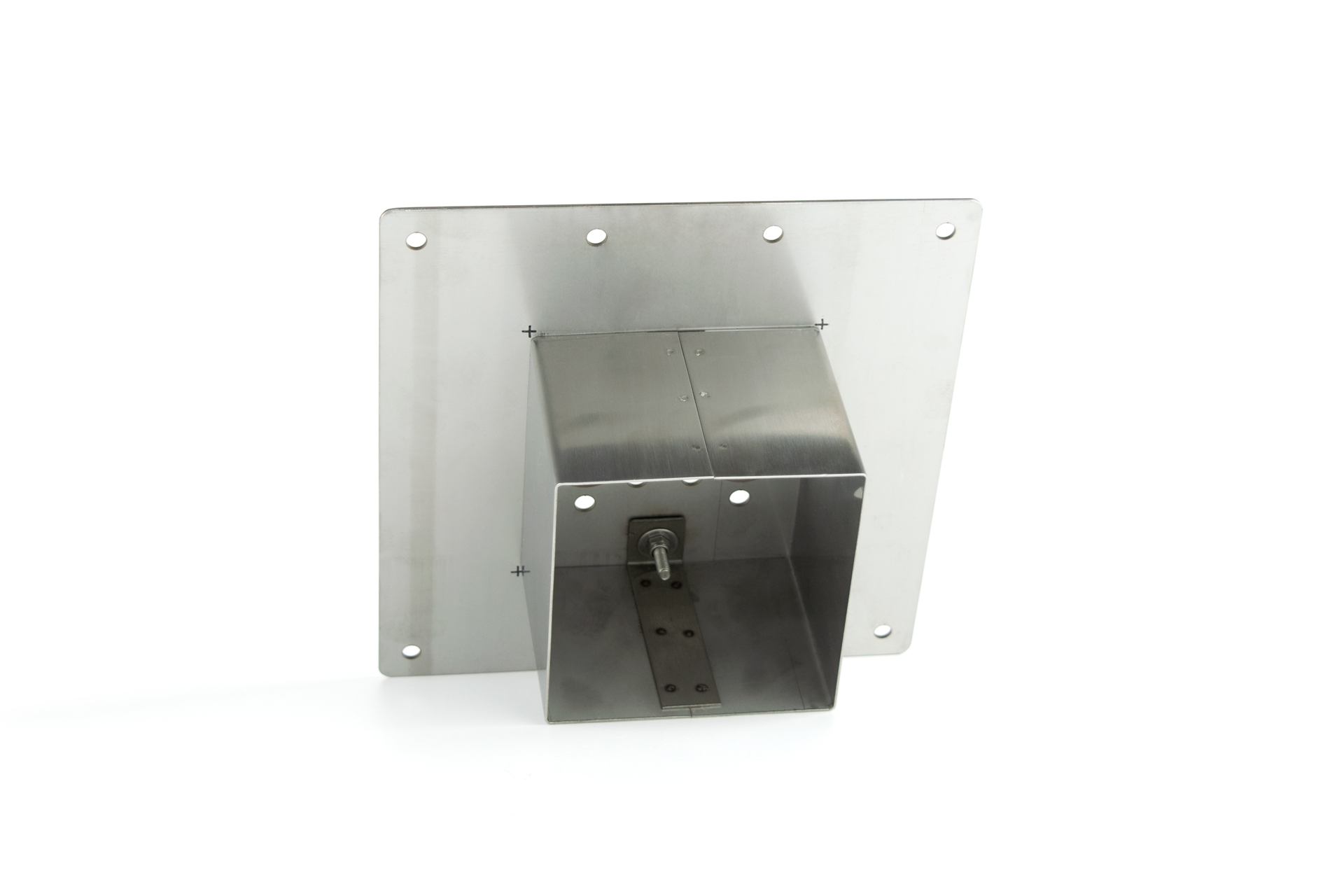

AUTOTERM Air 4D air heater is mounted on the top of the bracket, thus hiding fuel pump connection, exhaust outlet and air intake.

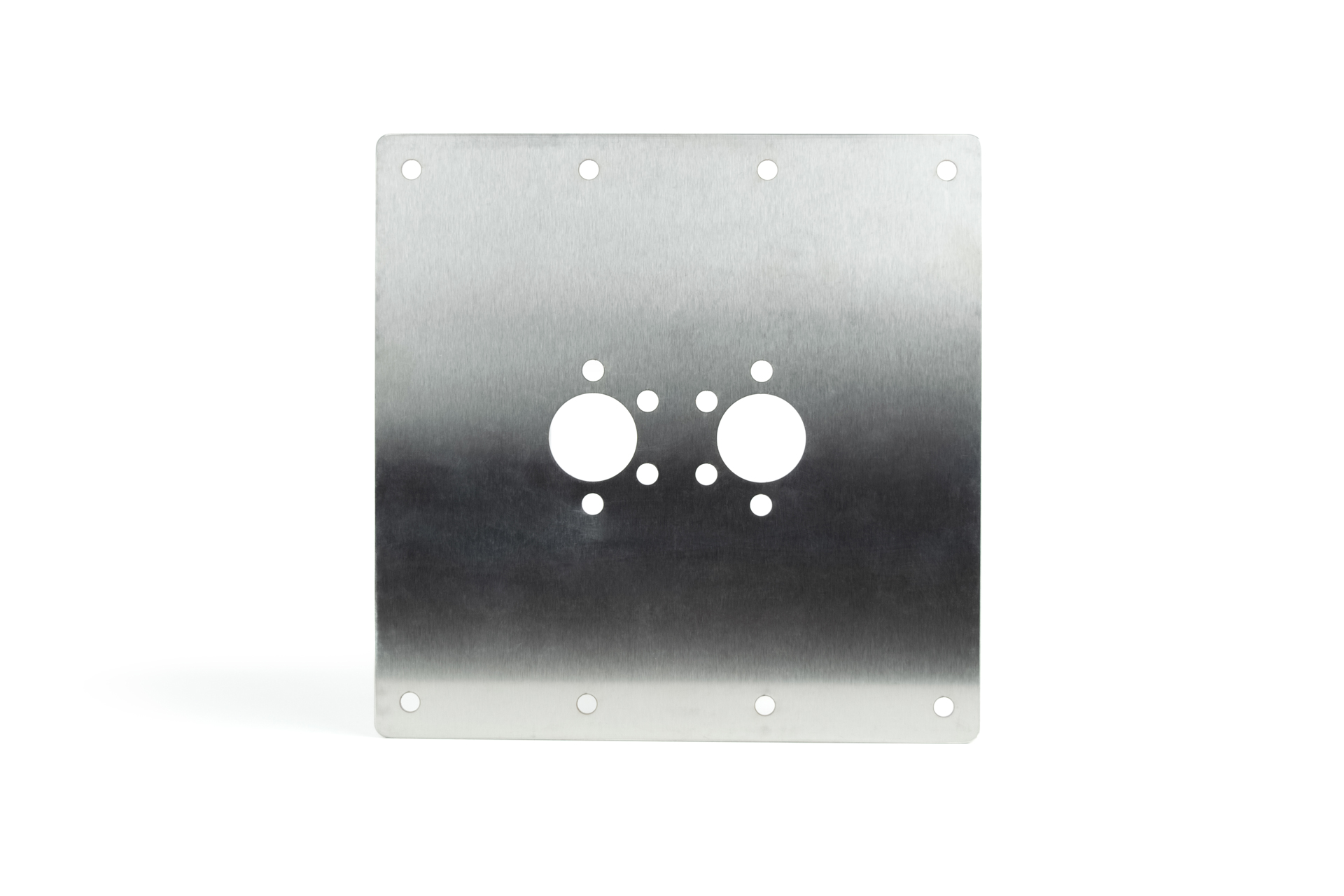

The floor mounting bracket is made of 316-grade stainless steel.

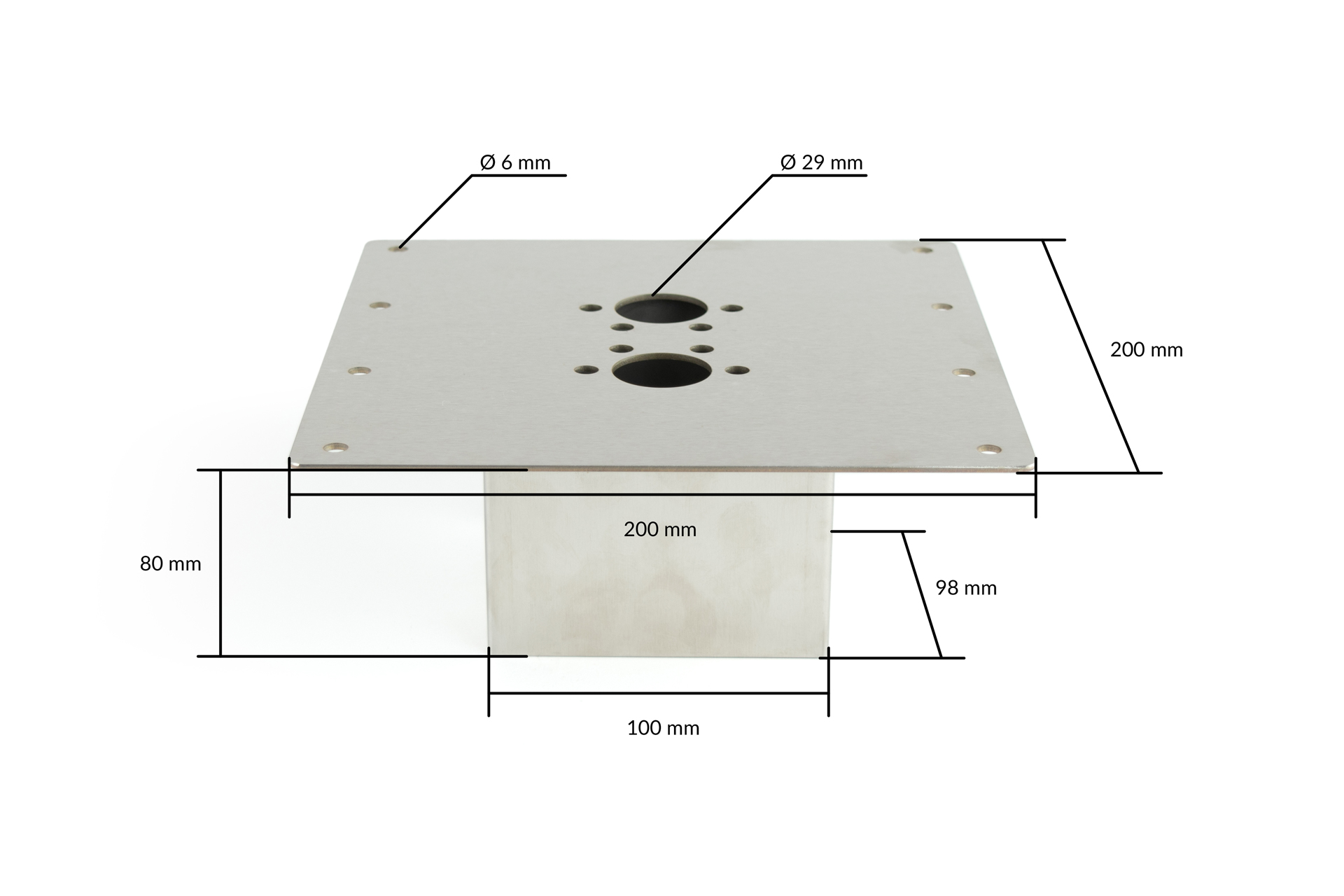

| Top (Length / Width / Height)
|
200 X 200 X 2 mm
|
| Bottom (Length / Width / Height) | 104 X 104 X 80 mm |
| Exhaust / Air intake | Ø 30 mm
|
| Screw | Ø 6 mm |
Inquire below for more details
