Technical parameters:

Voltage: 24V

Nominal air flow: 314 m3/h

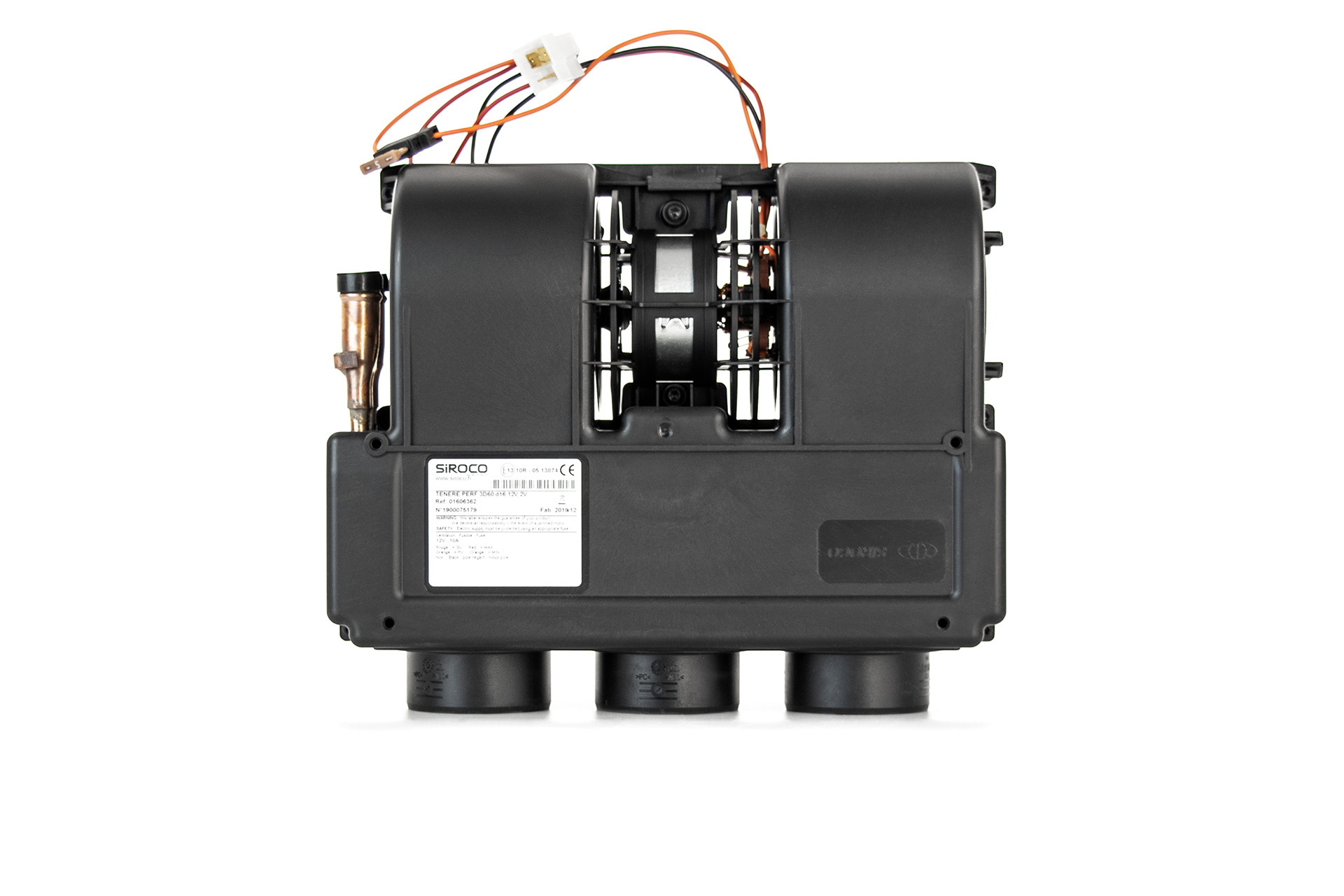

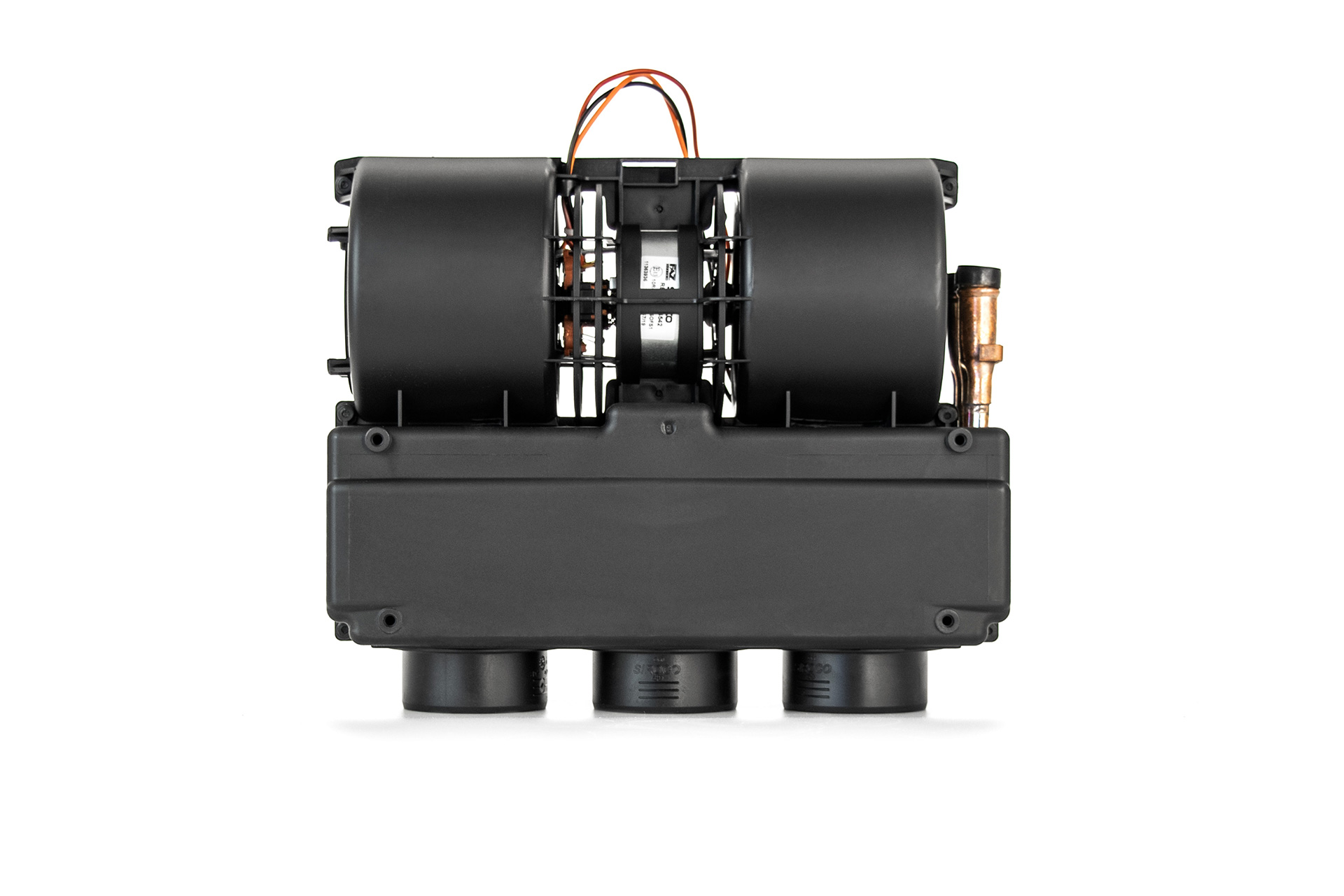

This heat exchanger has a 2-speed fan

Heating capacity, Ethylene glycol: 6.05 kW

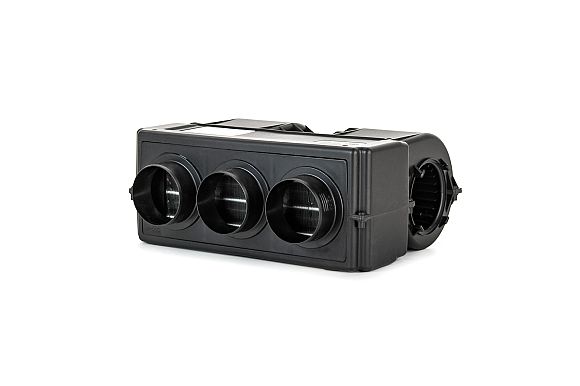

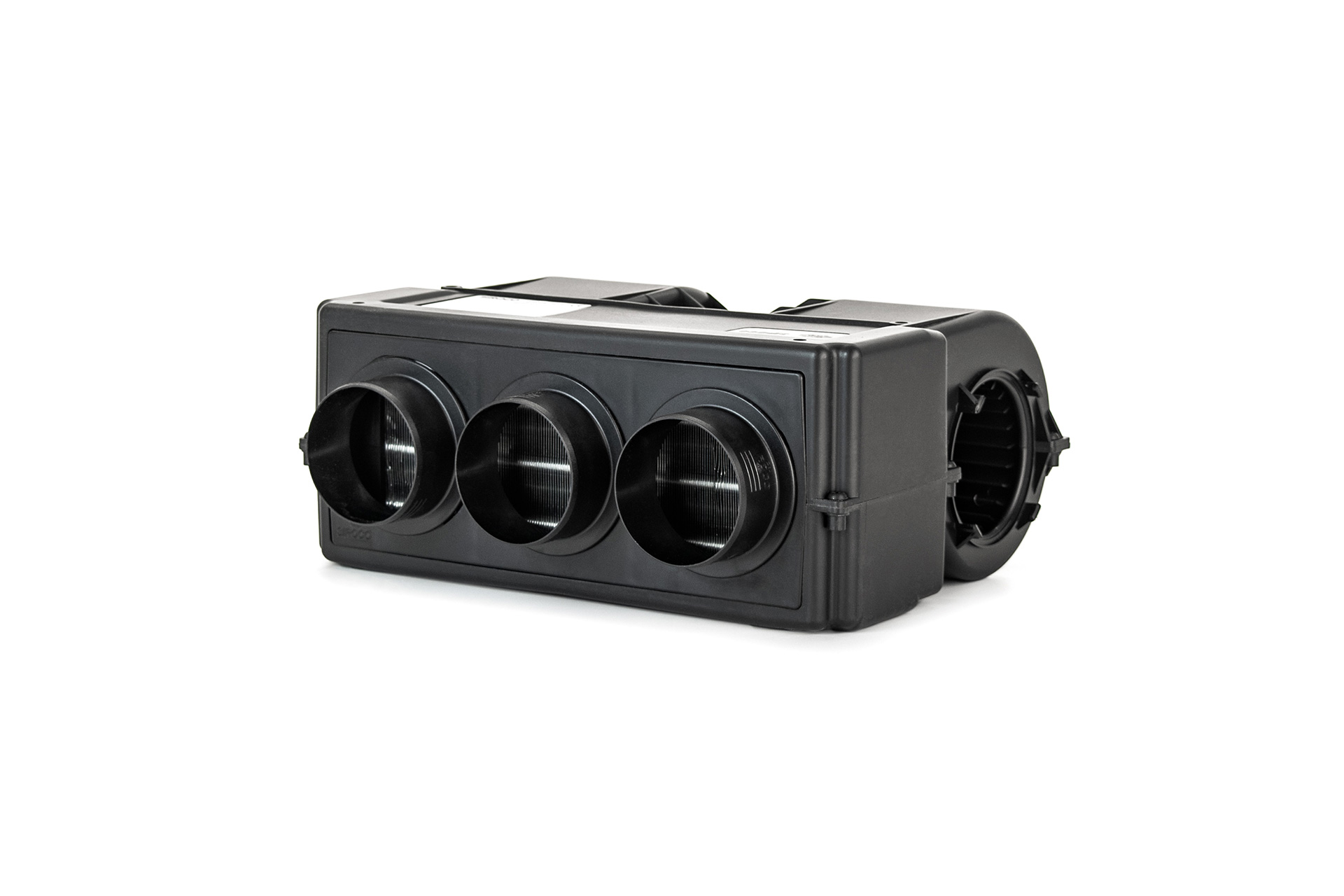

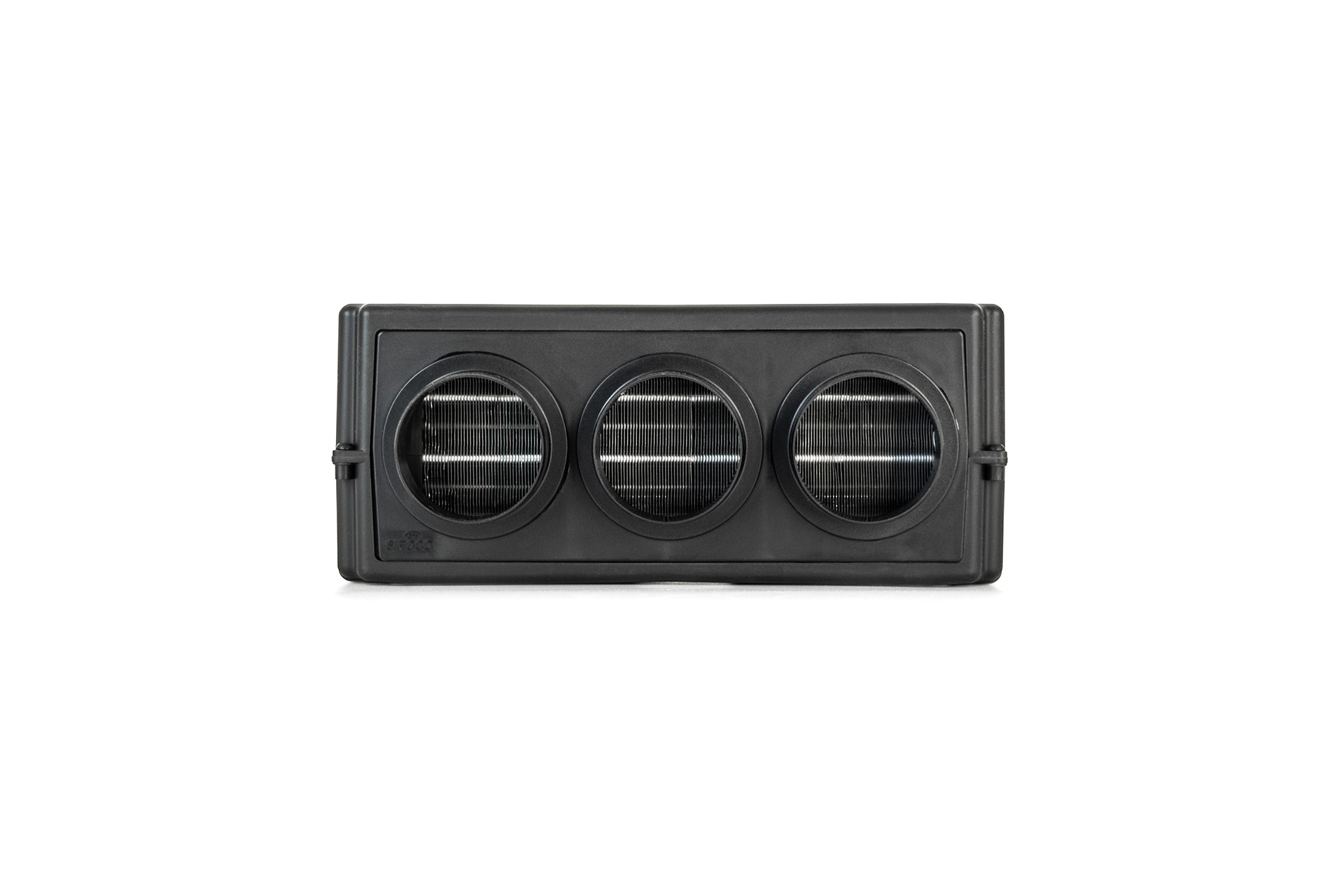

3 x ø60 mm air sleeves for even hot air distribution

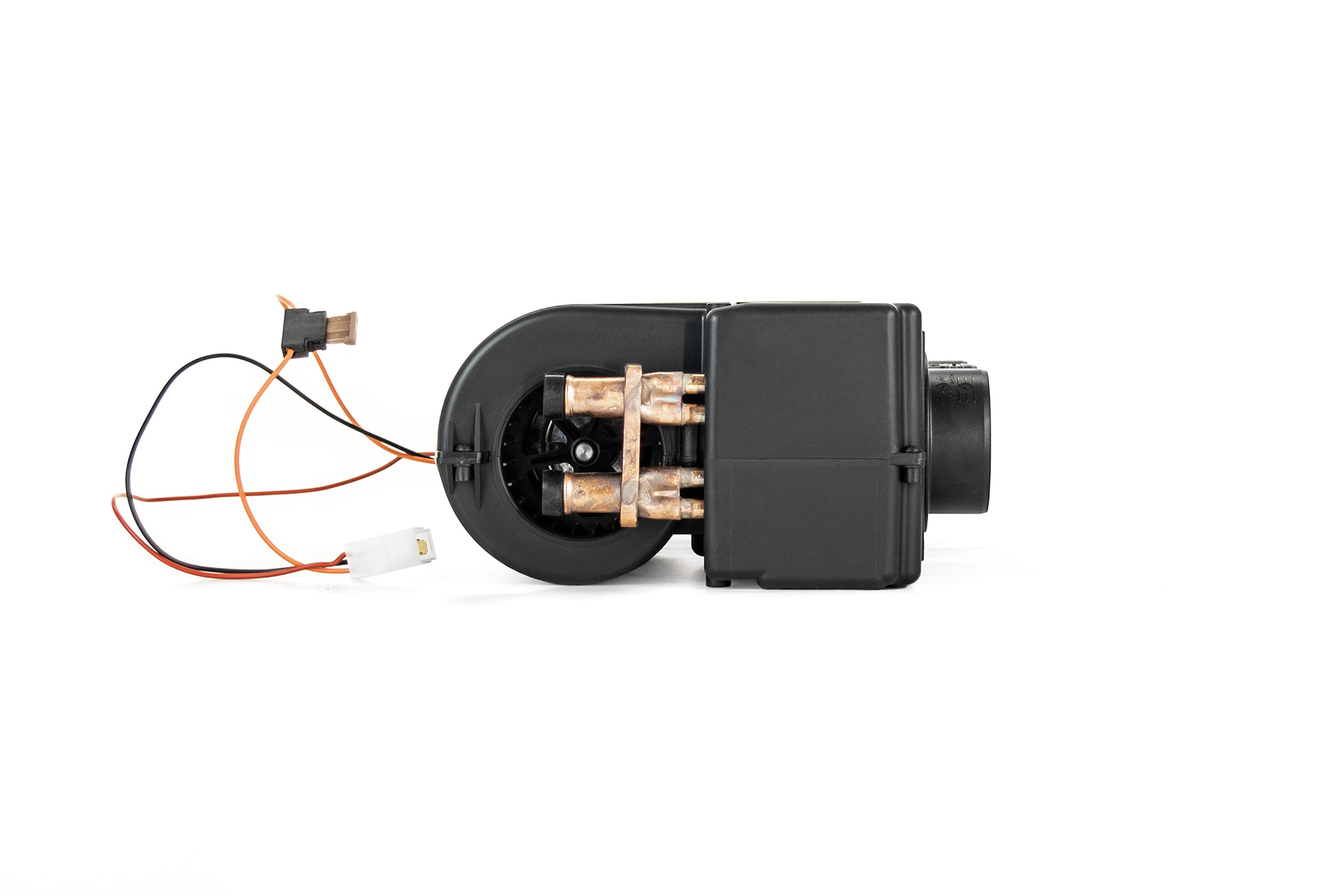

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88

For fan speed control optional 3-position rotary switch FR057 is required.

* 3-pin connector kit FR053 available separately - not included in the kit.

This liquid heat exchanger with a fan is suitable for all the following liquid heaters:

• AUTOTERM Flow 5 D / B
• AUTOTERM Flow 14D
