Technical parameters:

Voltage: 24V

Nominal airflow: 350 m3/h

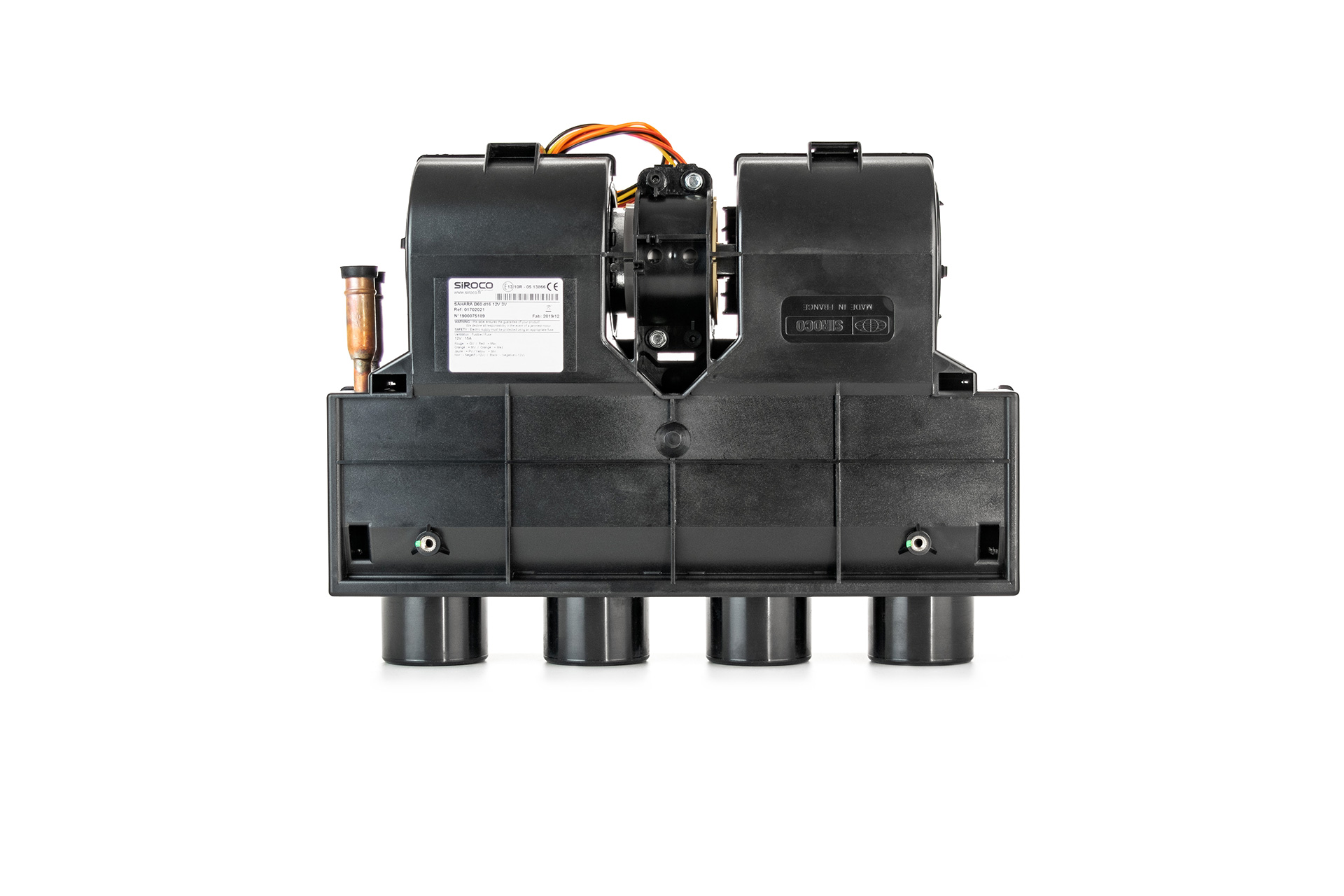

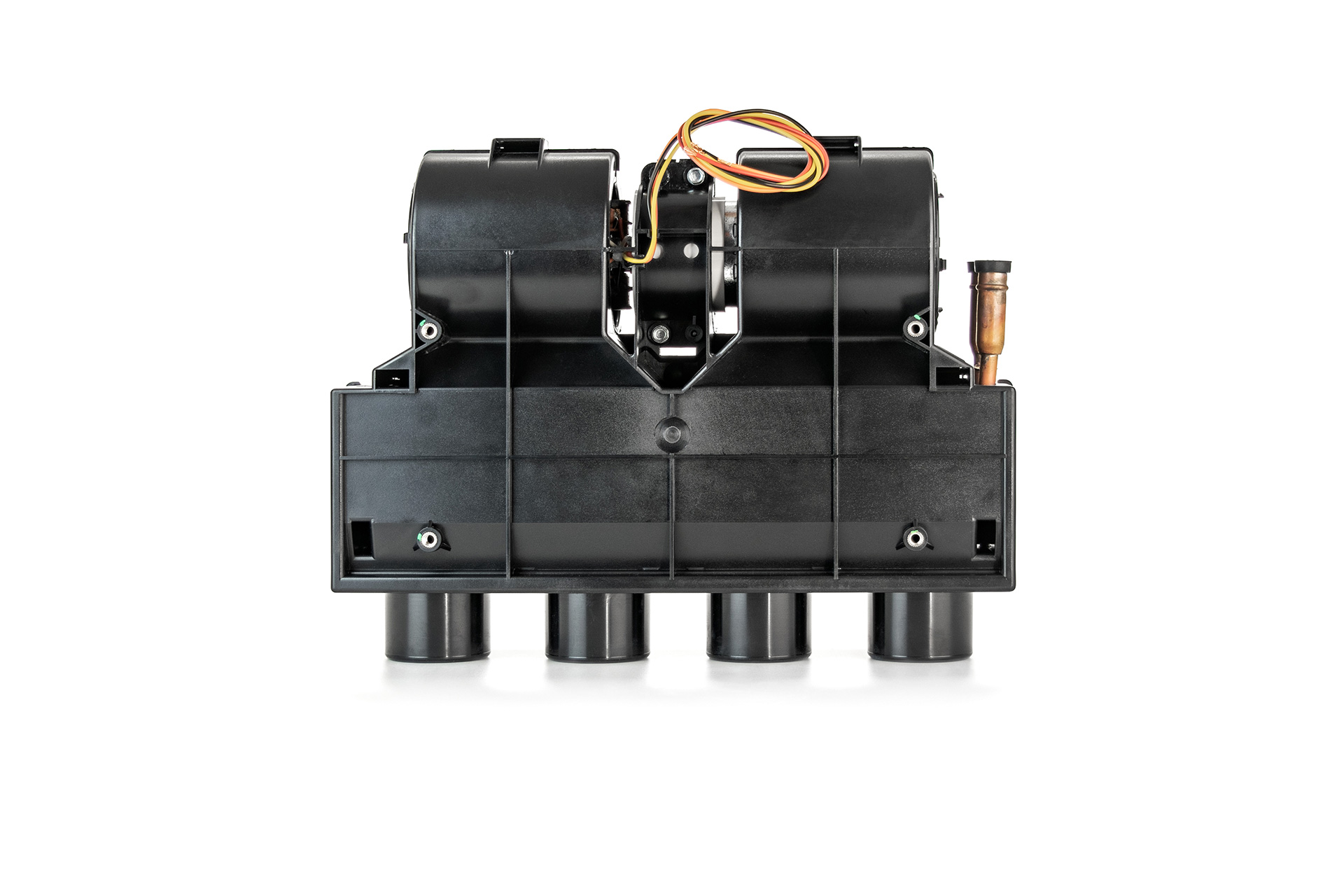

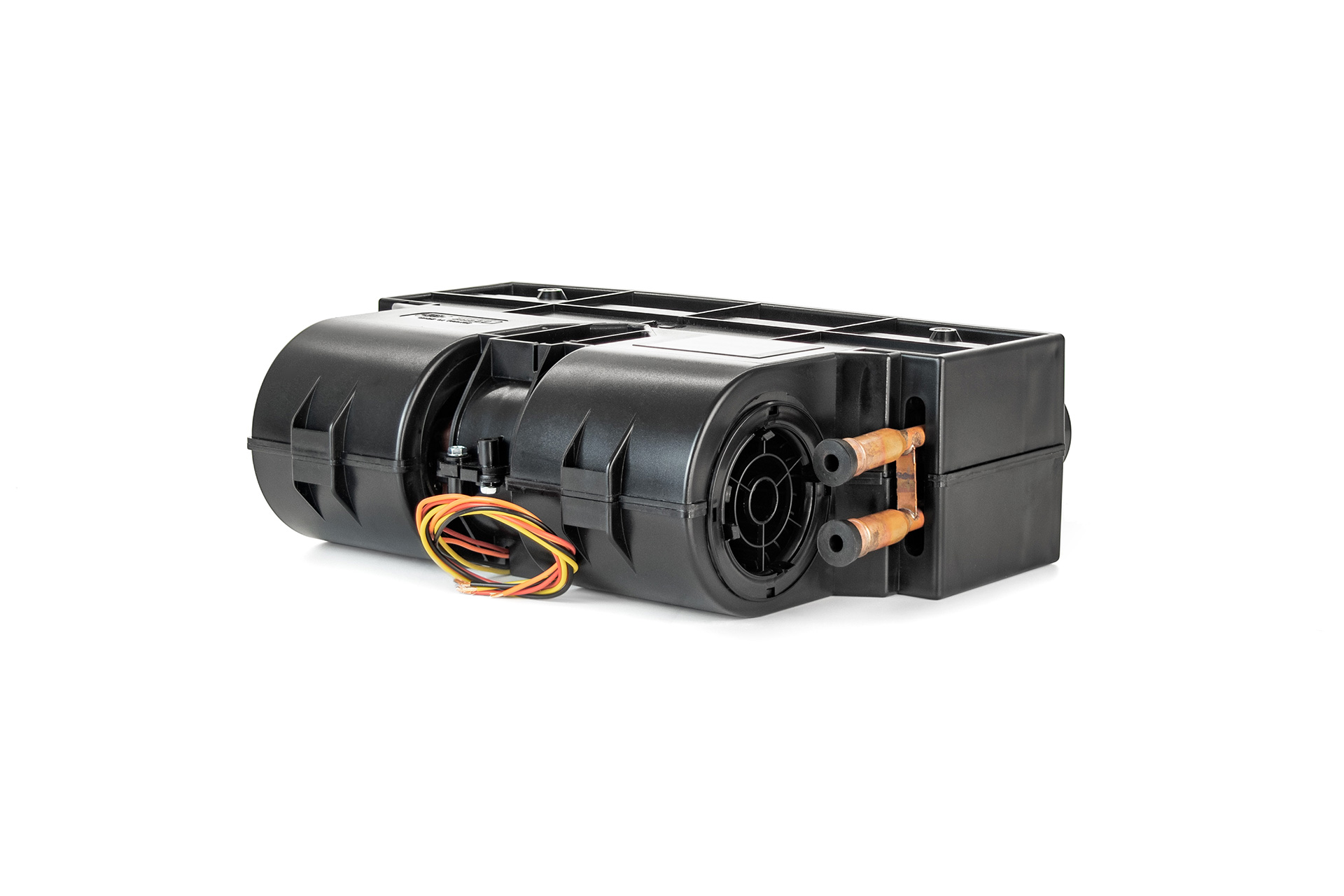

This heat exchanger has a 3-speed fan

Heating capacity, Ethylene glycol: 6.4 kW

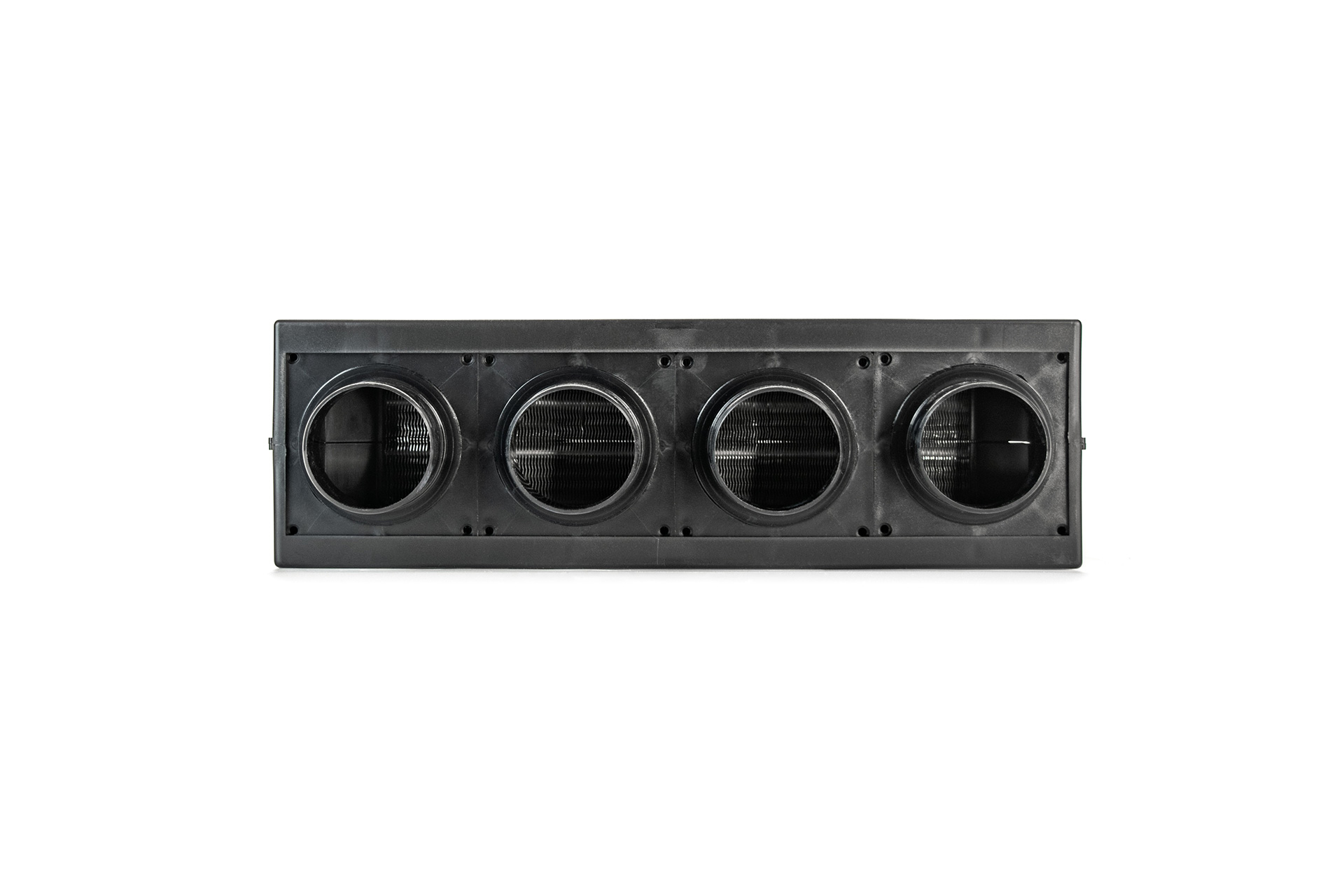

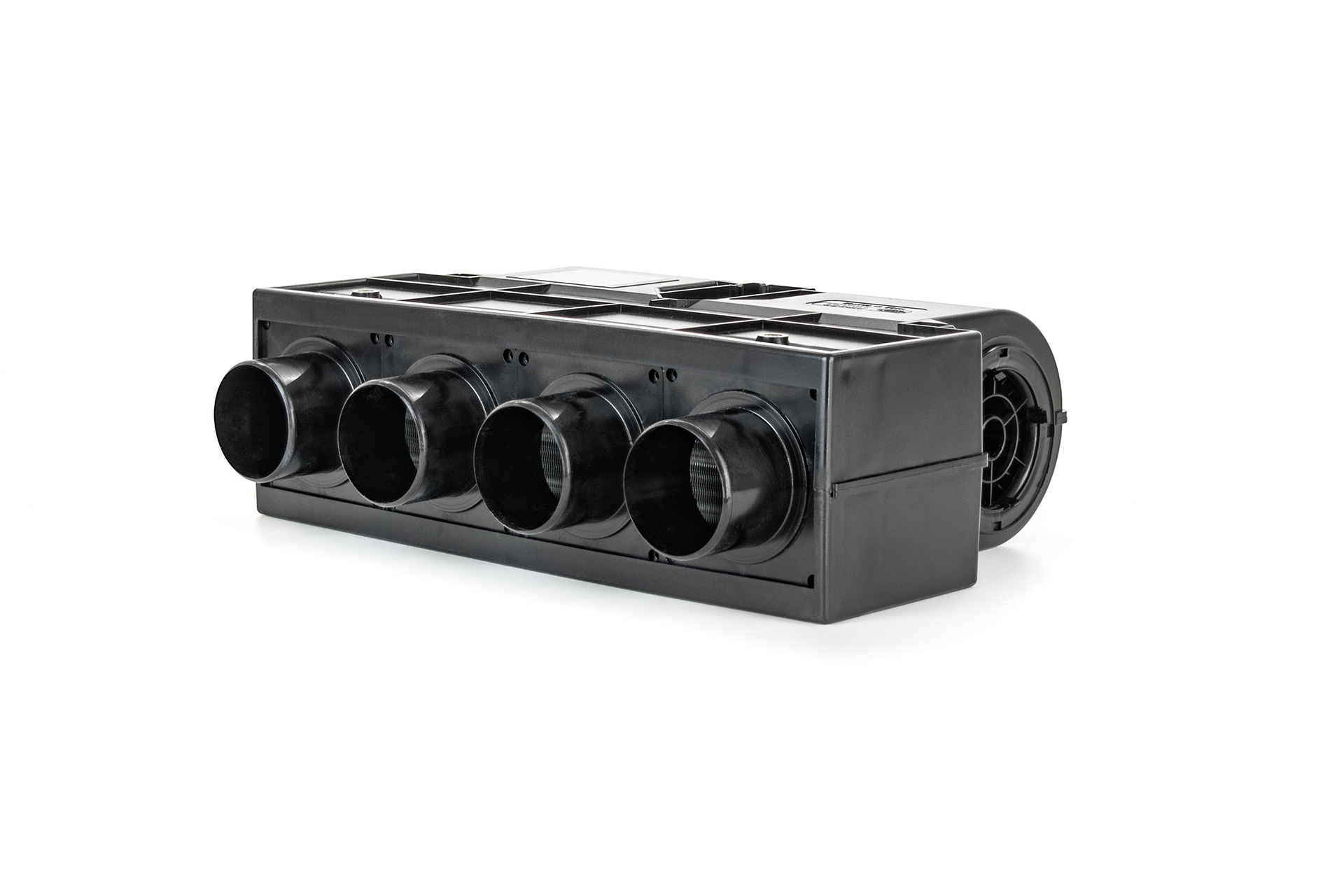

4 x ø60 mm air sleeves for even hot air distribution

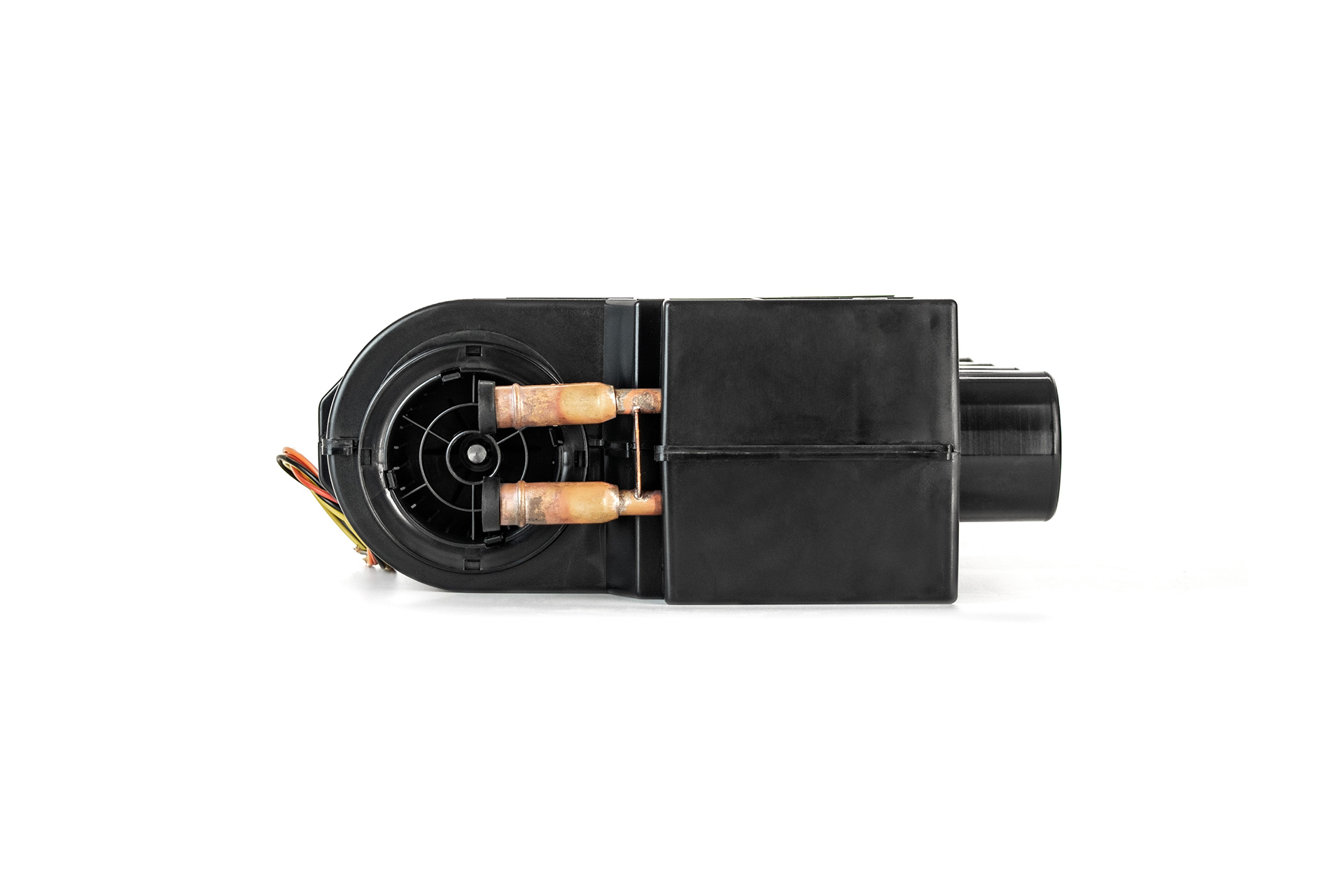

Inlet & outlet for ethylene glycol: ø16 mm

Maximum allowable inner temperature °C: 100

Maximum reachable inner temperature with AUTOTERM Flow series heater °C: 88

For fan speed control optional 4-position rotary switch FR018 is required.

A liquid heat exchanger with a fan is suitable for all the following liquid heaters:

• AUTOTERM Flow 5 D / B
• AUTOTERM Flow 14D
